Amplifier Speaker (CB26145E)

Details
Written by: Newton C. Braga

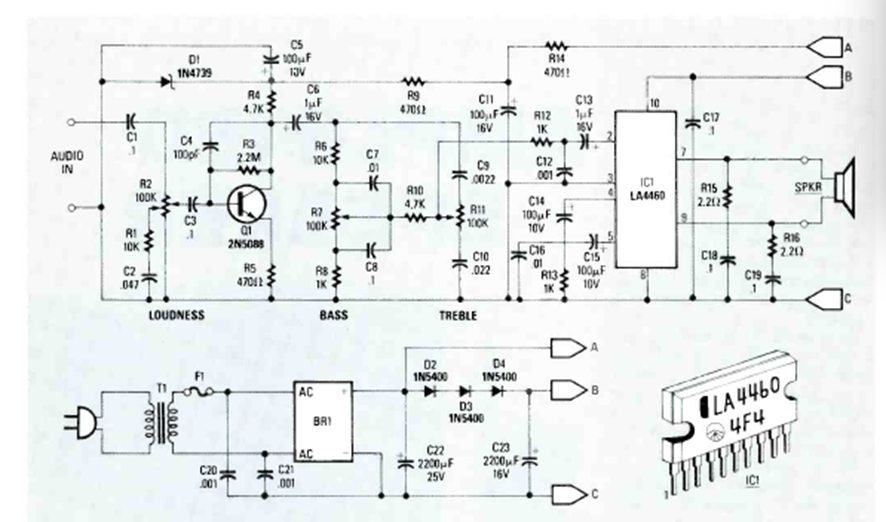

This circuit can be used as an amplifier for musical instruments or even with your cell phone. The circuit is old and was found in the 1990 edition of Radio Electronics Experimenter magazine.
