Laser Motor Control (CB25981E)

Details
Written by: Newton C. Braga

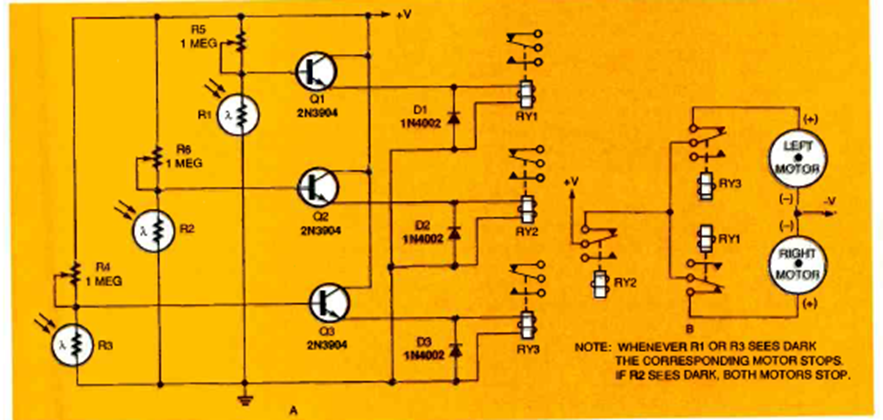

We found this circuit in the October 1996 Electronics Now magazine. The circuit uses LDRs as sensors and drives relays. The relays must have voltages according to the power supply.




| Clique na imagem para ampliar |
