Triggered oscillators (CB25028E)

Details
Written by: Newton C. Braga

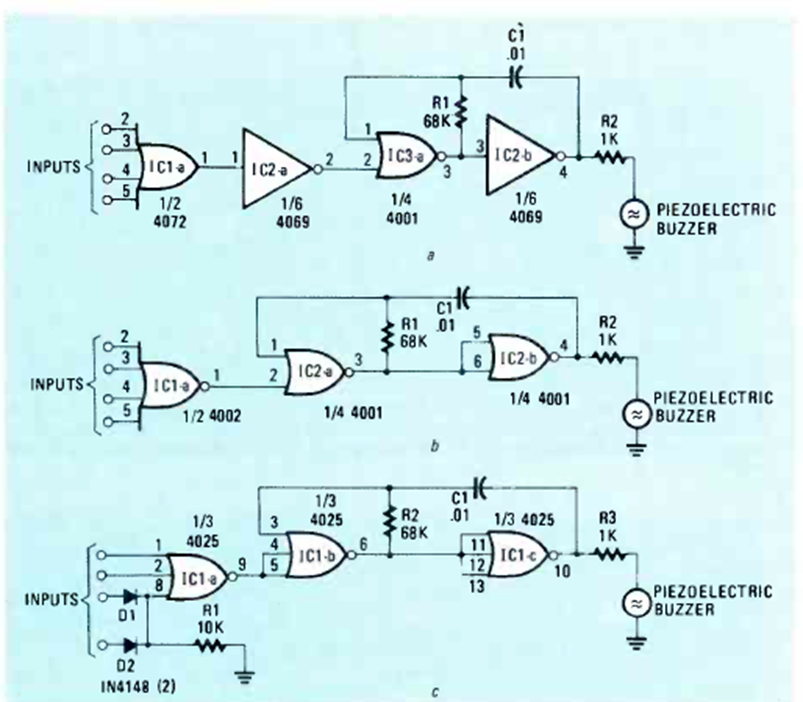

In the figure we have 3 oscillators with logic gates that can be triggered by external logic signals. The circuits were found in the Radio Electronics magazine of April 1987.
