Voltage Detector (CB26083E)

Details
Written by: Newton C. Braga

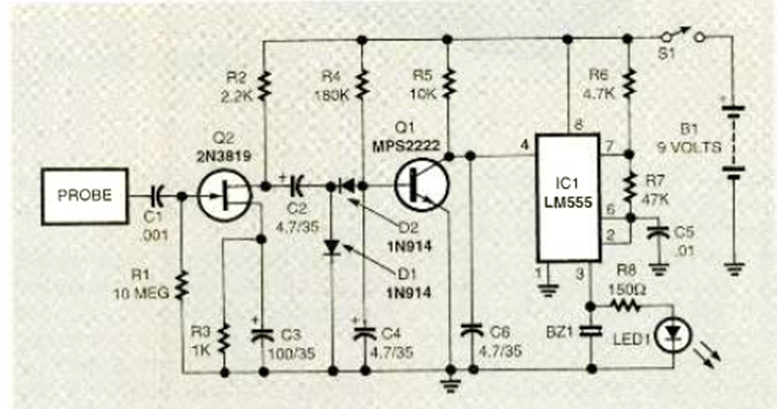

This circuit consists of an electrostatic sensor that can check if a cable is energized by simply approaching it. The circuit is from an Electronics Now from December 1998.
