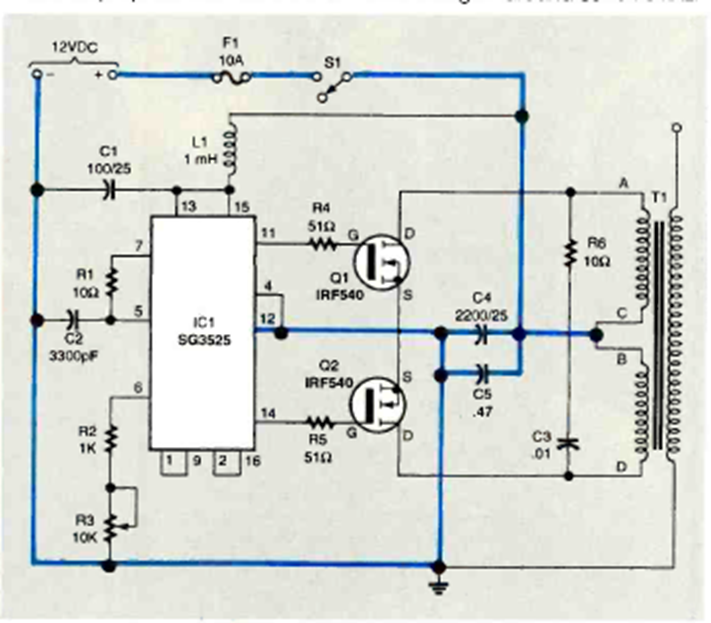

Plasma Lamp CIR25999S CB26021E (CB26021E)

This circuit was found in the August 1997 Electronics Now magazine. The FETs must be provided with heat sinks.

| Clique na imagem para ampliar |
