Motor Speed ​​Control (CB26003E)

Details
Written by: Newton C. Braga

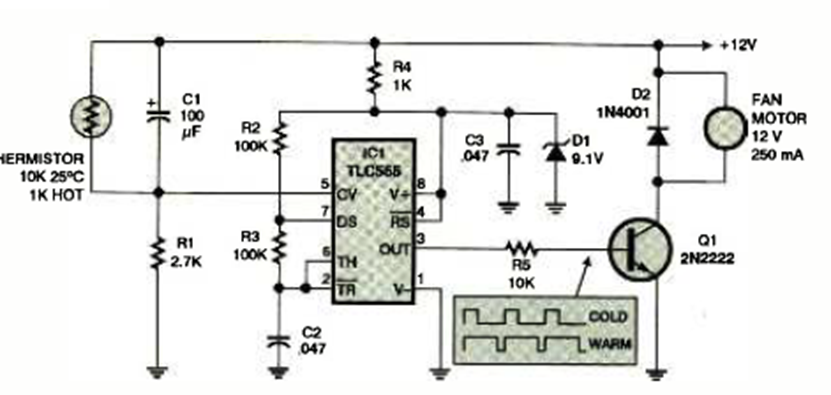

Found in the February 1997 Electronics Now magazine, this circuit controls motors according to the transistor used. For the transistor indicated, the maximum current is 200 mA.




| Clique na imagem para ampliar |
