CMOS square oscillator (CB26054E)

Details
Written by: Newton C. Braga

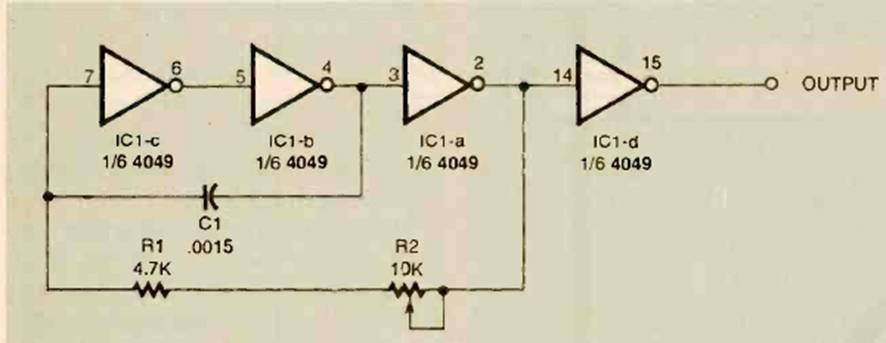

This circuit was found in the July 1998 issue of Electronis Now magazine. It is a traditional gated version of the 4049 and has its frequency controlled by R2.




| Clique na imagem para ampliar |
