Two volumes for the amplifier (CB26079E)

Details
Written by: Newton C. Braga

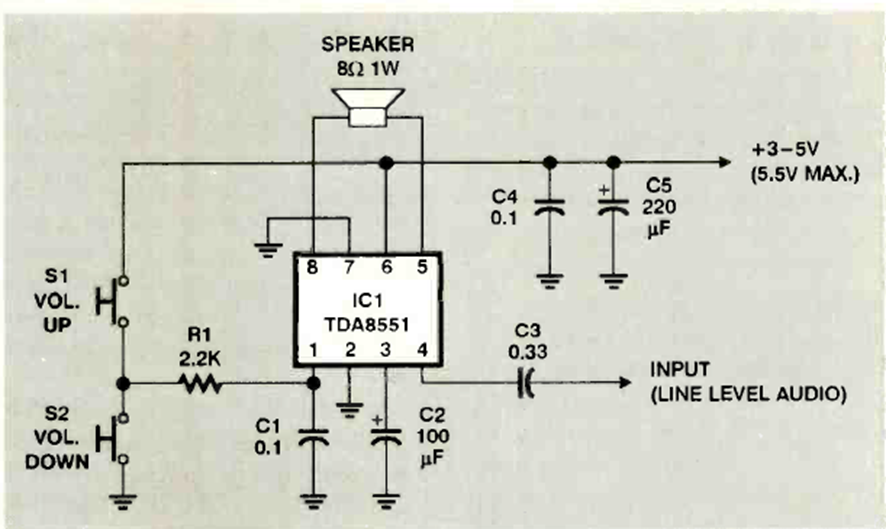

This interesting circuit for the RDA8851 allows you to obtain two volumes with a simple touch. The circuit is from an Electronics Now from December 1988. Note the amplifier voltages.




| Clique na imagem para ampliar |
