Thermostat with Triac (CB25081E)

Details
Written by: Newton C. Braga

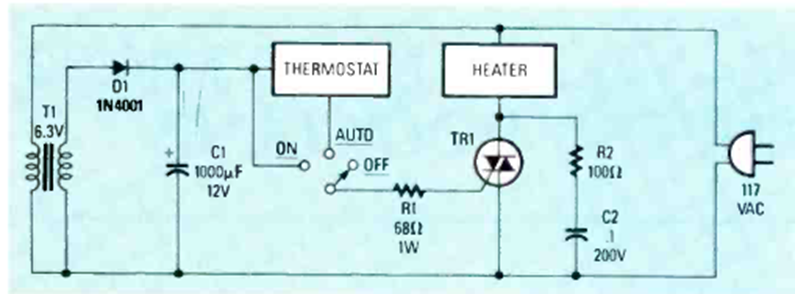

We found this circuit in the October 1987 Radio Electronics magazine. The triac must be controlled according to the heater. The transformer has a low current, of the order of a few hundred mA.
