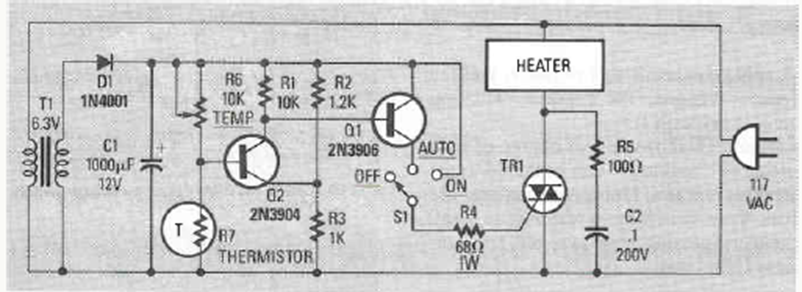

Triac Thermostat (CB26129E)

Details
Written by: Newton C. Braga



We found this circuit in the 1989 Radio Electronics Experimenter. The circuit uses common components, and the thermistor is supposed to determine the value of the trim potentiometer.
