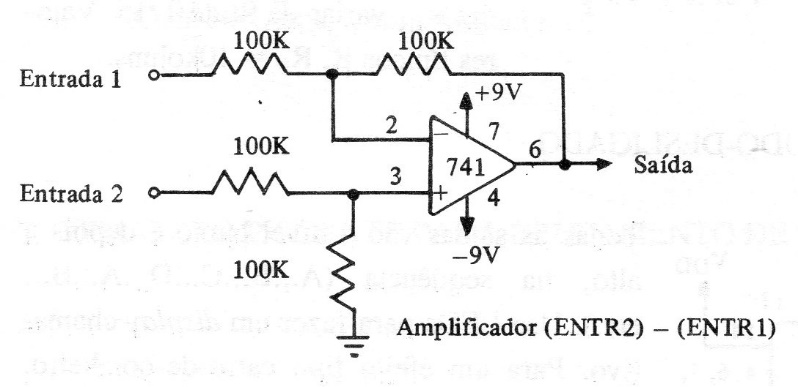

In the figure we have the conventional configuration of a differential amplifier with the operational amplifier 741. The circuit is valid for other operational amplifiers and can be seen in several approaches on this website. The power supply must be symmetrical, and its voltage can be between 6 and 12 V.
