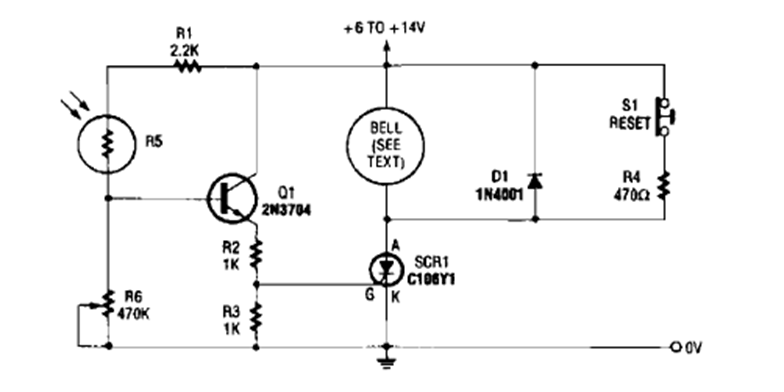

We found this circuit that triggers an SCR in the Encyclopedia of Electronic Circuits volume 5 of 1995. The circuit is powered by voltage according to the warning load.
| Clique na imagem para ampliar |
Light Activated Alarm with Latch (CB26239E)
