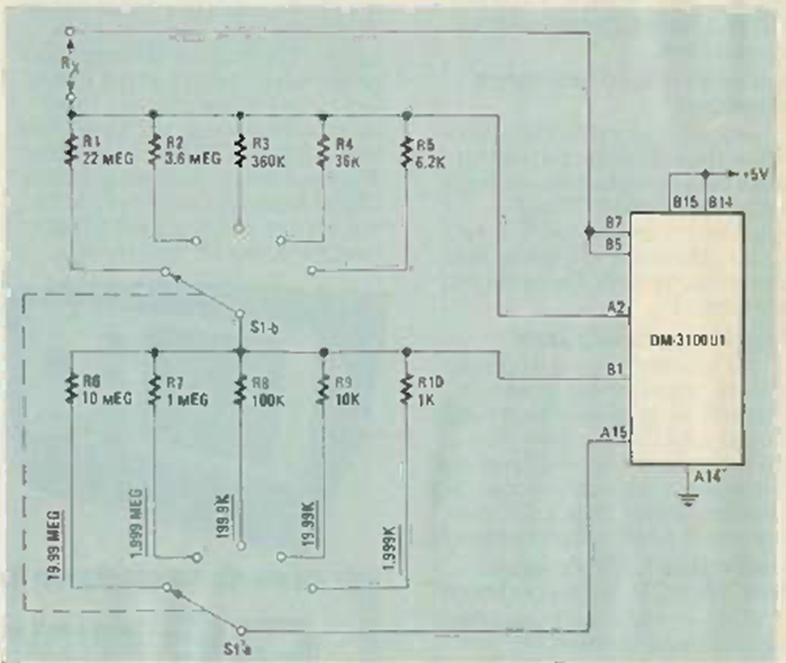

This resistance meter circuit was found in the February 1984 issue of Radio Electronics magazine. It is based on a digital module from that time. The power supply is 5 V.
| Clique na imagem para ampliar |
Ohmmeter DM31D0UI (CB24784E)
