Phono preamplifier LM387 (CB24941E)

Details
Written by: Newton C. Braga

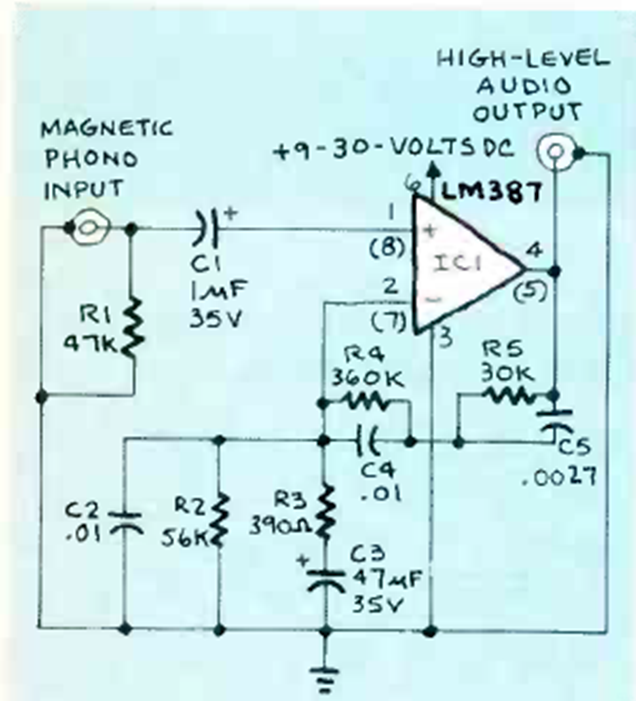

This preamplifier circuit for magnetic cartridges was found in the March 1986 Radio Electronics magazine. The circuit is powered by voltages from 9 to 30 V.
