Voltage Switch (CB24969E)

Details
Written by: Newton C. Braga

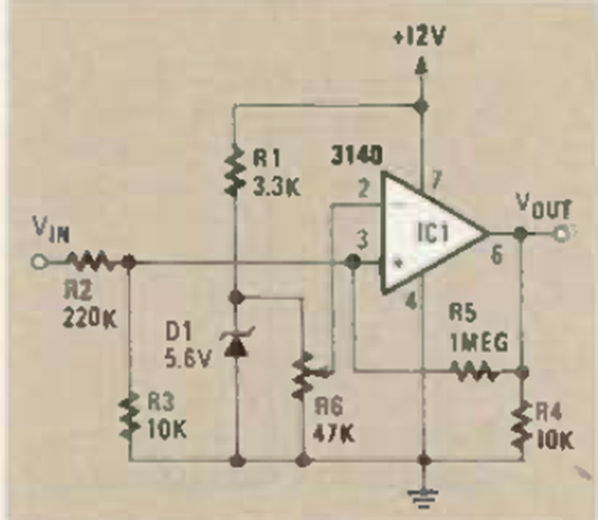

This circuit with regenerative action was found in the June 1986 issue of Radio Electronics magazine. It uses a CA3140 and has a zener diode as a reference.
