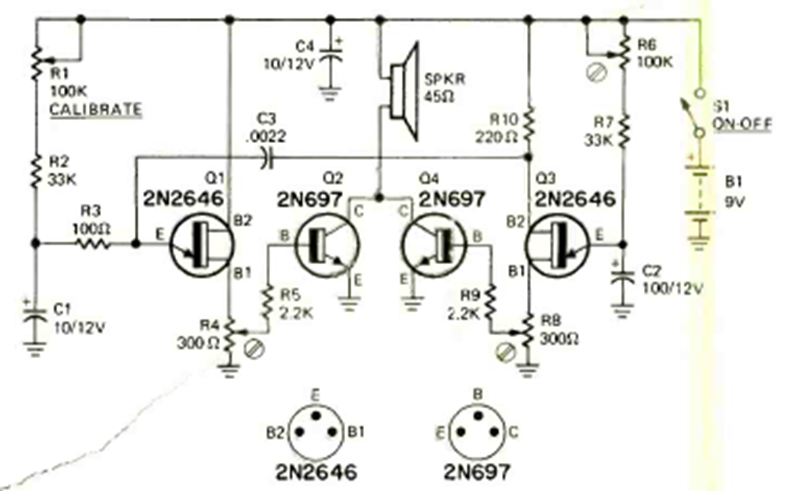

This 4-transistor timer was found in the April 1975 issue of Radio Electronics magazine. It uses both single-ended and single-junction transistors to provide a dual audio output.
| Clique na imagem para ampliar |
Timer (CB24377E)
- Details
- Written by: Newton C. Braga
