DC Motor Control 555 (CB24908E)

Details
Written by: Newton C. Braga

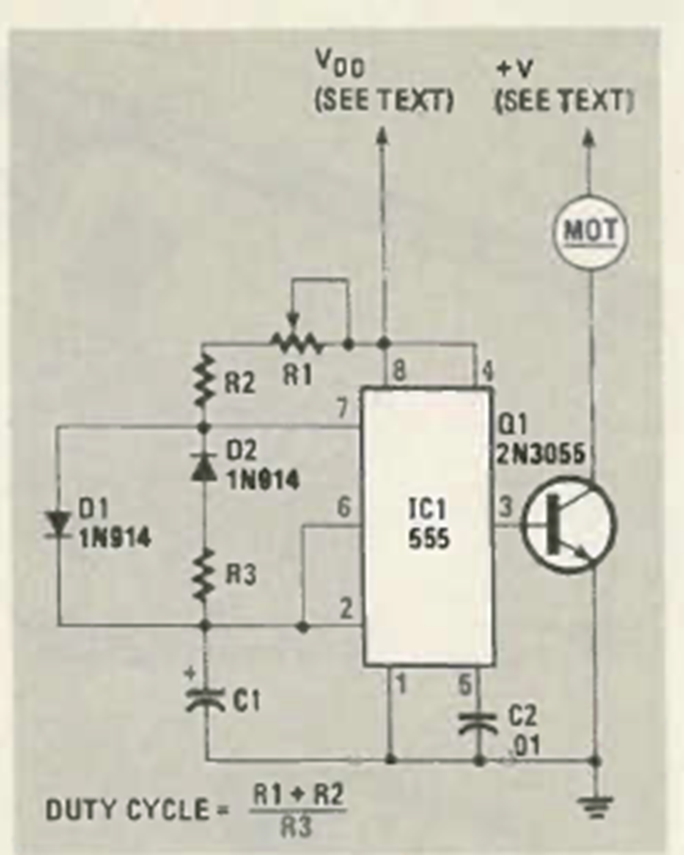

Another of the many similar configurations we have in this section. This one is from a Radio Electronics magazine from June 1985. The transistor is according to the power of the controlled motor.
