Signal Injector (CB24210E)

Details
Written by: Newton C. Braga

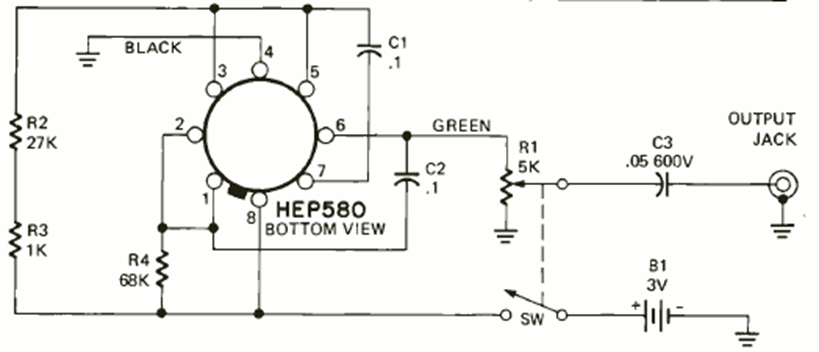

Found in the September 1972 issue of Radio Electronics magazine, this signal injector is based on the HEP580. The circuit is powered by two batteries and its frequency is basically given by C1.




| Clique na imagem para ampliar |
