Stereo FM Decoder (CB24016E)

Details
Written by: Newton C. Braga

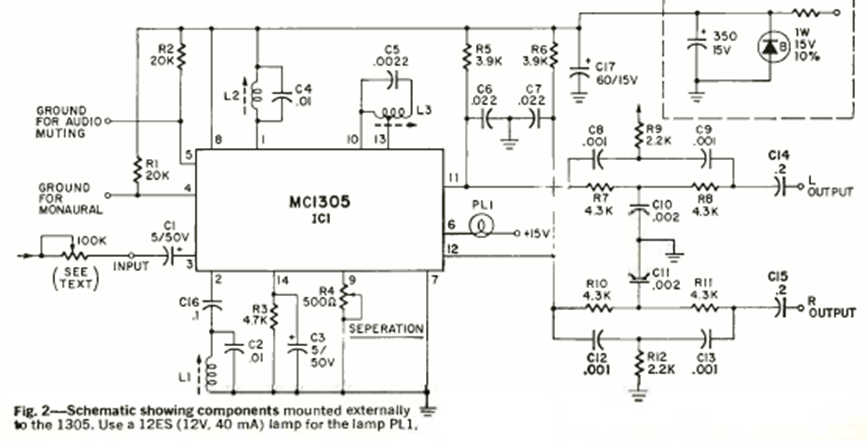

This circuit is from a Radio Electronics from March 1970. The integrated circuit used is one of the first for this purpose, being improved later leading to types that succeeded it.
