IR Remote Control Receiver (CB24986E)

Details
Written by: Newton C. Braga

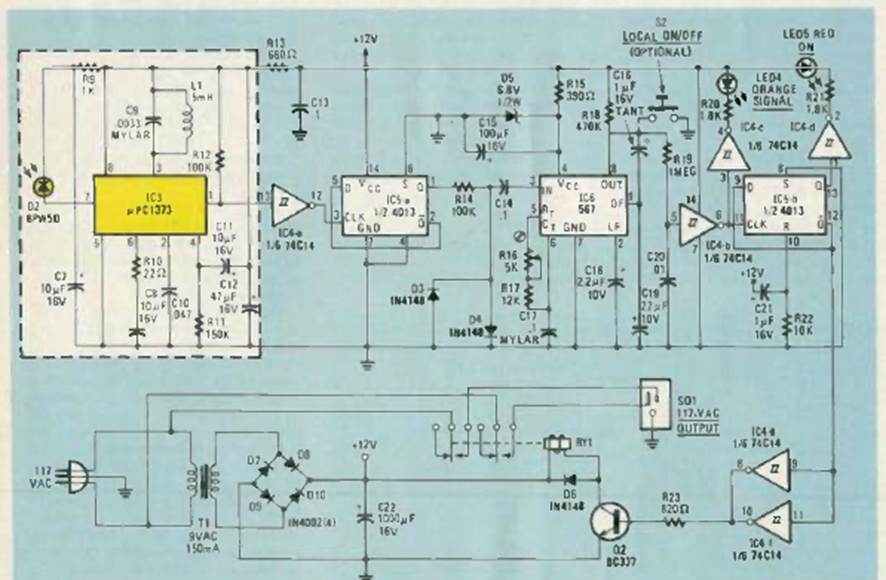

This is the receiver circuit for the transmitter of the previous circuit using an integrated circuit of the time. The circuit is in the same Radio Electronics magazine as August 1986.
