Trigger with CA3018 (CB24095E)
- Details
- Written by: Newton C. Braga

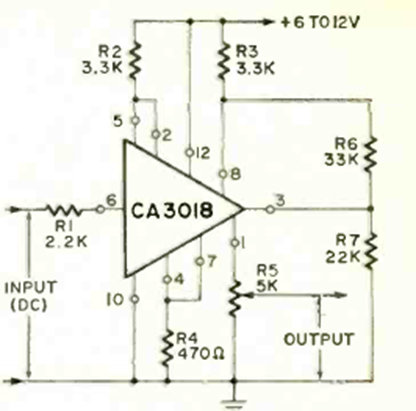

This Schmitt trigger with the CA3018 integrated circuit was found in the November 1970 issue of Radio Electronics magazine. The output signal strength is adjusted by R5.
