Voltage divider CA3140 (CB24968E)

Details
Written by: Newton C. Braga

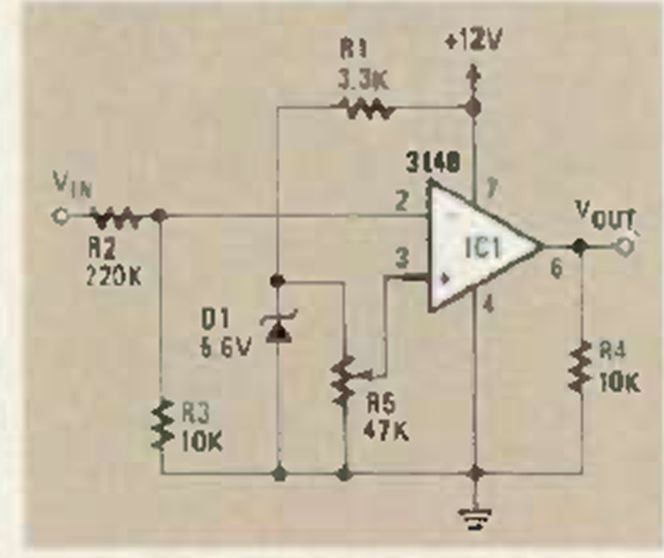

The figure shows how to use an operational circuit as a voltage divider. The circuit is from a Radio Electronics magazine from June 1986. The reference voltage is given by a zener diode.
