Shortwave Converter (CB24017E)

Details
Written by: Newton C. Braga

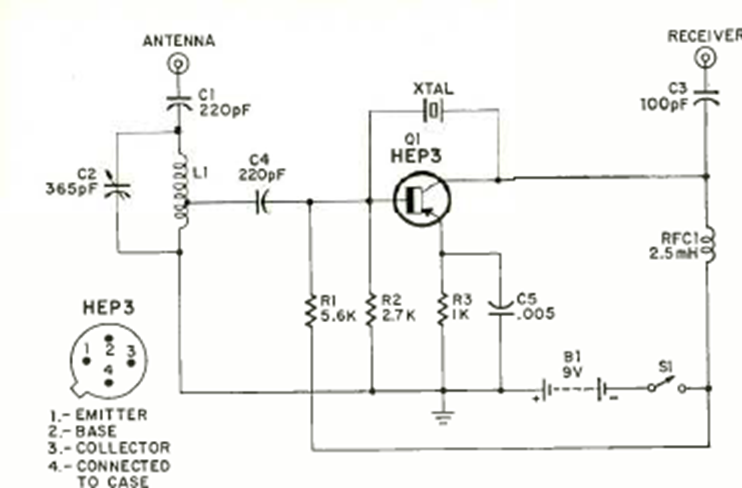

This circuit is from a Radio Electronics from March 1970. The crystal depends on the frequency at which the signal is to be captured and the resonant circuit determines the tuned band.
