Power Usage Monitor (CB24827E)

Details
Written by: Newton C. Braga

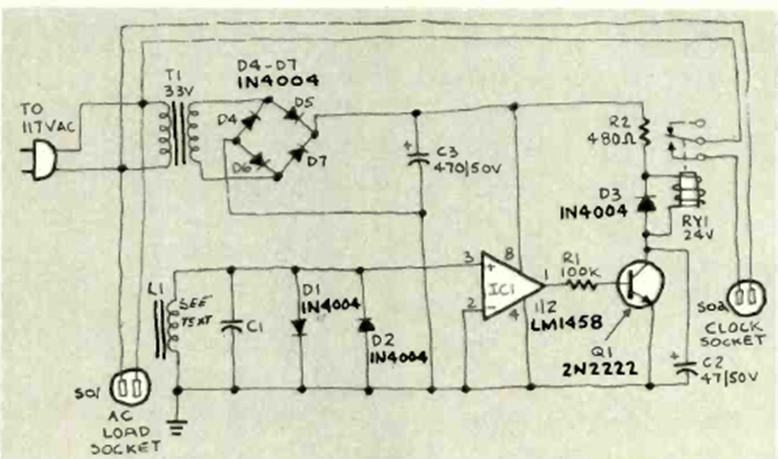

We found this circuit in Radio Electronics magazine from August 1984. The circuit aims to control the power supplied to an alternating current load. The components are common.




| Clique na imagem para ampliar |
