IR Remote Control (CB24985E)

Details
Written by: Newton C. Braga

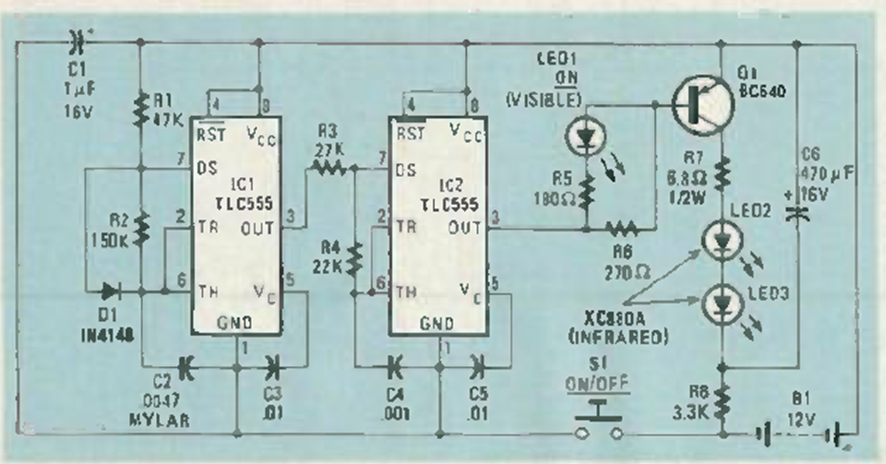

This is the transmitter for a remote-control system published in the August 1986 issue of Radio Electronics magazine. The circuit uses two 555 CMOS transistors to drive two series LEDs.
