Pulse and Ramp Generator XR2206 (CB24510E)

Details
Written by: Newton C. Braga

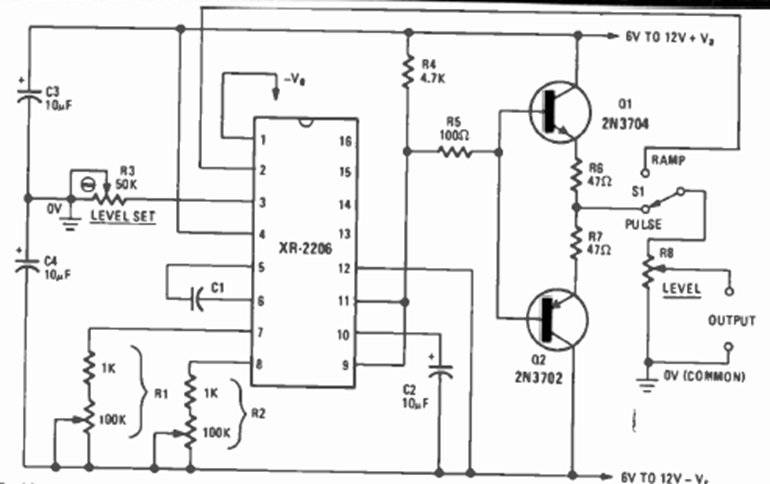

This interesting benchtop circuit was found in the May 1977 issue of Radio Electronics magazine. The circuit has frequency adjustment, and the waveform selected by a switch.




| Clique na imagem para ampliar |
