Bucket Brigade Circuit (CB24912E)

Details
Written by: Newton C. Braga

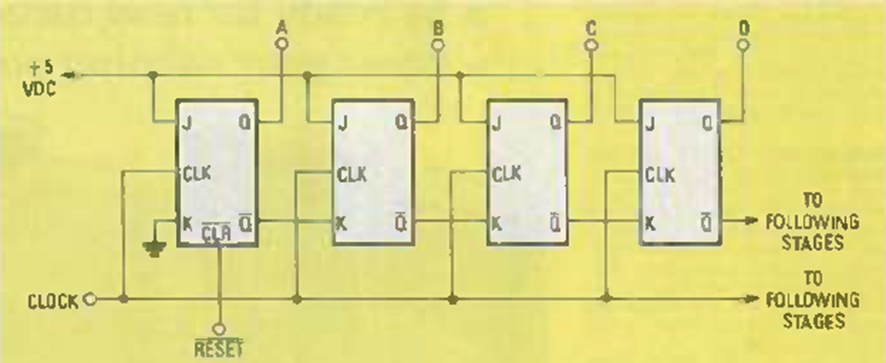

This logic circuit that transfers the level from one gate to the next with each clock pulse was found in the September 1985 issue of Radio Electronics magazine.




| Clique na imagem para ampliar |
