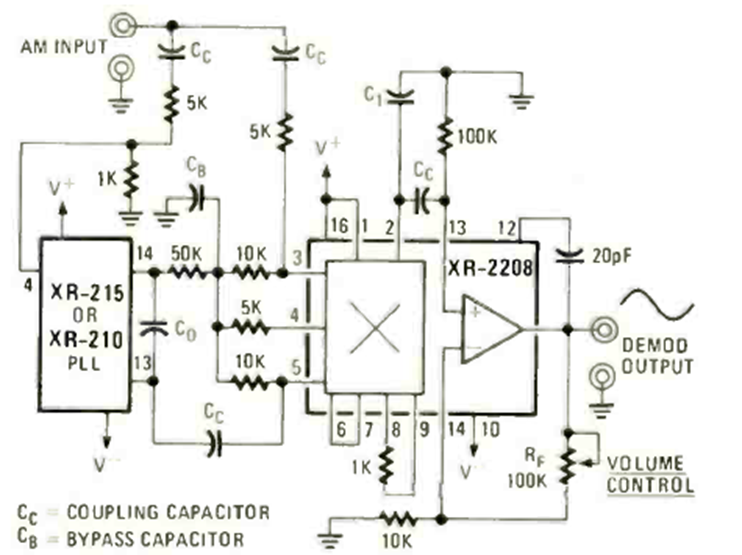

PLL detector or carrier detector XR2208 (CB24553E)

Details: Written by: Newton C. Braga

This circuit was obtained from the April 1978 Radio Electronics magazine. The other circuit is a PLL of the time. The power supply must be 15 V symmetrical.

| Clique na imagem para ampliar |
