Precision Digital Thermometer (CB24588E)

Details
Written by: Newton C. Braga

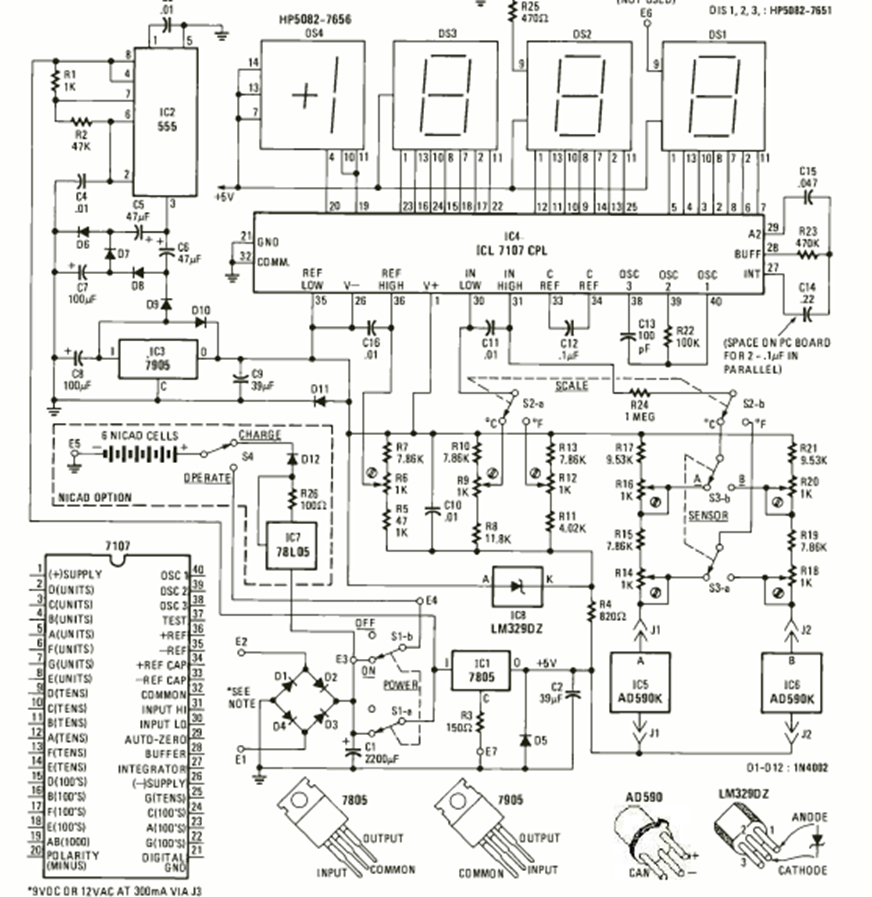

This circuit is from a Radio Electronics magazine from July 1979. It uses the well-known IC 7107, a liquid crystal exciter that became popular in circuits of this type at the time.




| Clique na imagem para ampliar |
