Car regulator with alternator (CB24643E)

Details
Written by: Newton C. Braga

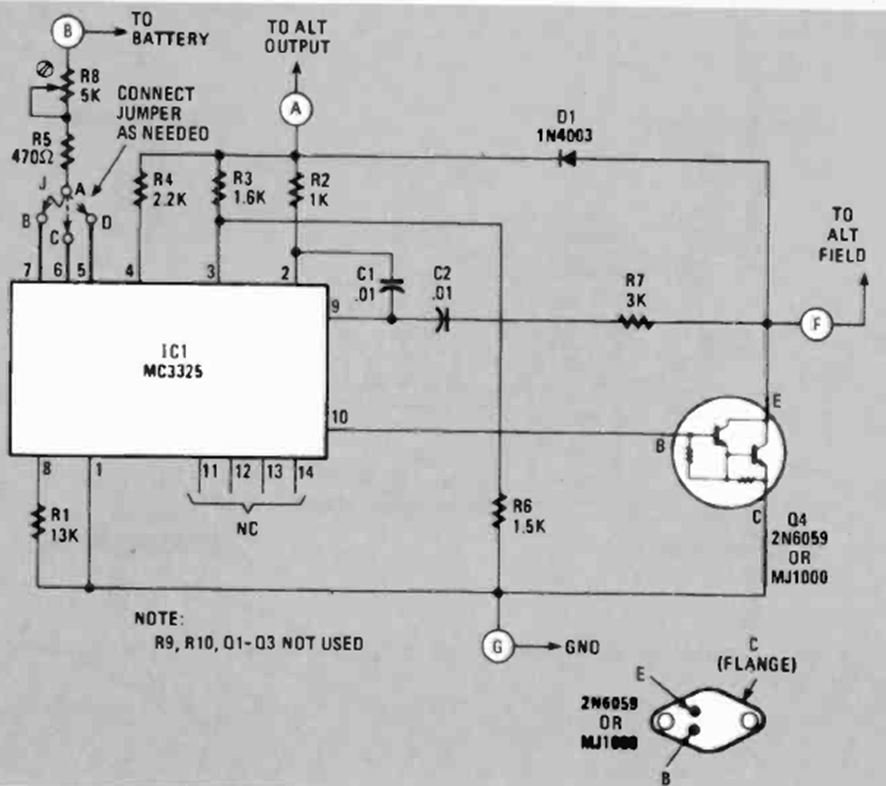

Found in the July 1980 Radio Electronics magazine, this circuit uses an integrated circuit from the time and a power Darlington. The Darlington must be equipped with a heat sink.
