Thermostat (CB24644E)

Details
Written by: Newton C. Braga

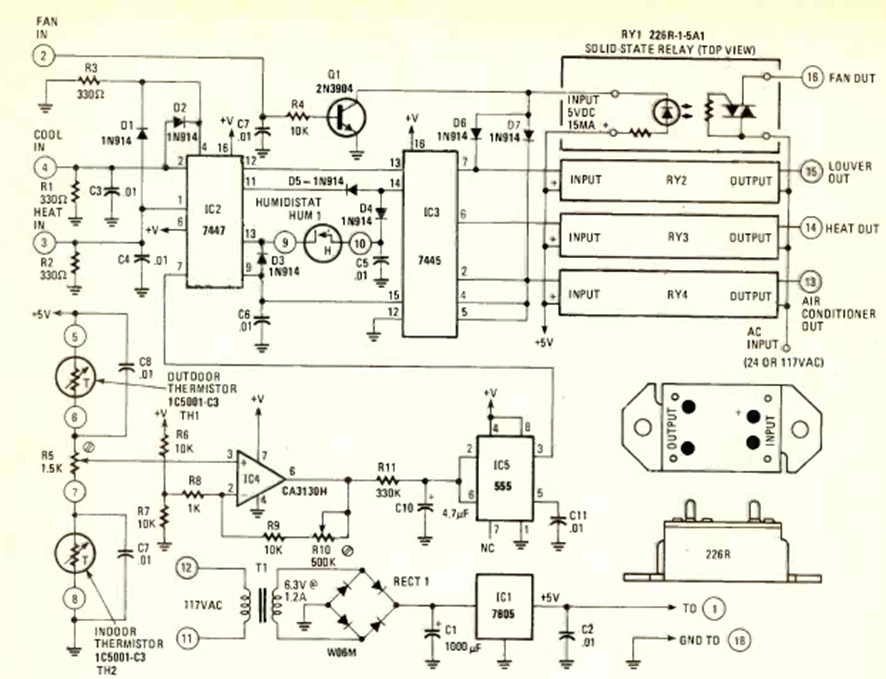

We found this multiple thermostat circuit in July 1980 Radio Electronics magazine. It uses opto-triacs for power control and operates on a 117 VAC mains.
