4049 Oscillator with Mark and Space (CB24857E)

Details
Written by: Newton C. Braga

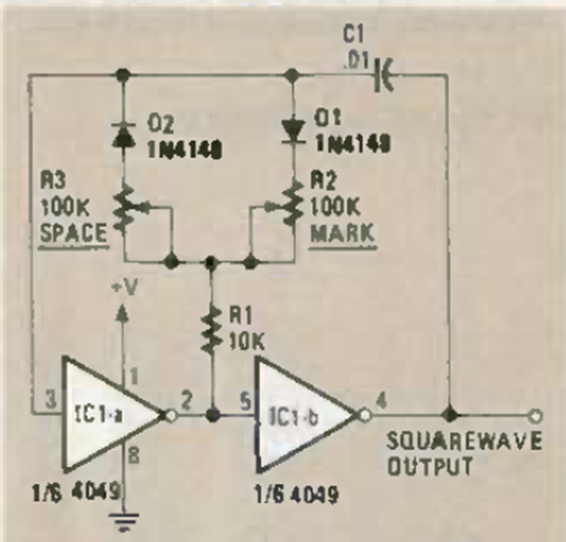

With mark and space adjustment this circuit was found in November 1984 Radio Electronics. The base frequency depends on C1.
