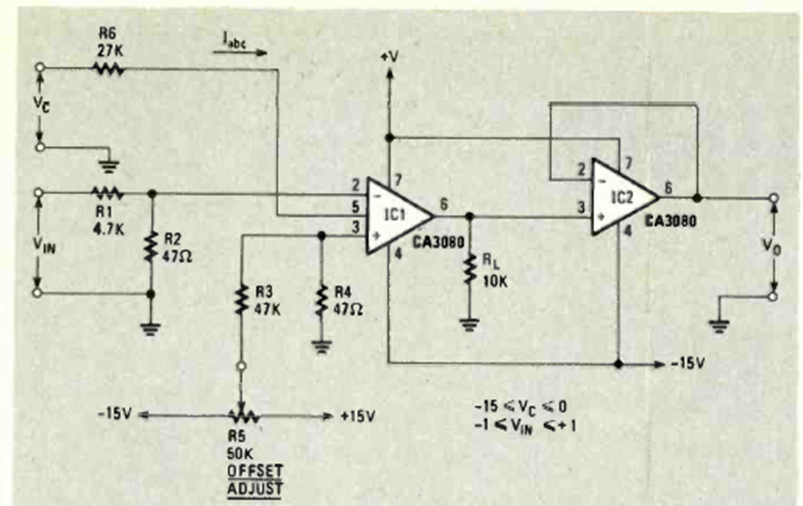

Voltage Controlled Amplifier (CB24873E)

Details
Written by: Newton C. Braga



This circuit was found in the December 1984 issue of Radio Electronics magazine. The circuit has a control voltage range of -15 to 0 V requiring a symmetrical source.
