FSK Generator XR2206 (CB24511E)

Details
Written by: Newton C. Braga

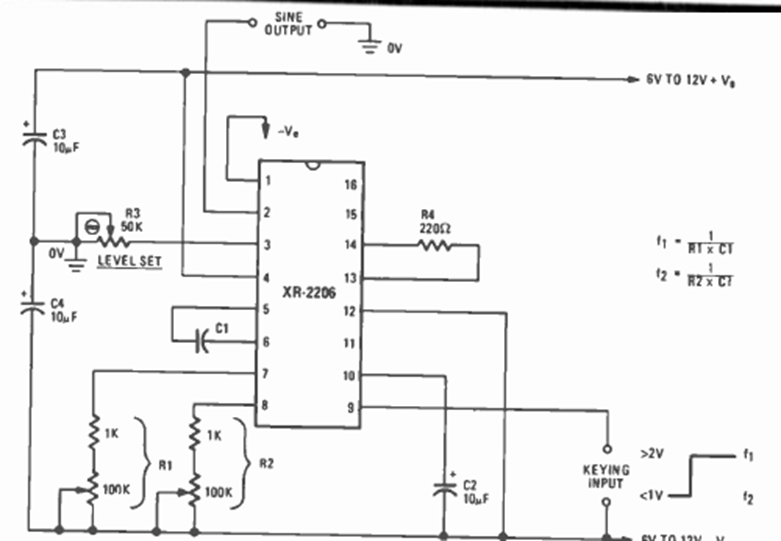

This circuit for low frequency data transmission was found in the May 1977 issue of Radio Electronics magazine. The circuit modulates the signal at two frequencies for bits 0 and 1.




| Clique na imagem para ampliar |
