Monostable (CB24438E)

Details
Written by: Newton C. Braga

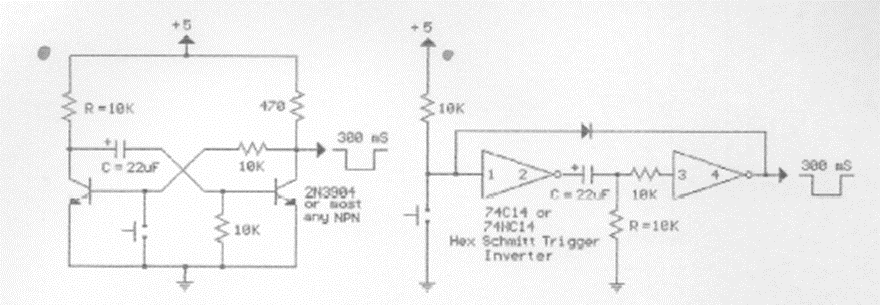

We found this circuit in documentation from the 90s. It is a common configuration that is given in two versions, using transistors and using two integrated inverters.
