Battery Charger (CB24537E)

Details
Written by: Newton C. Braga

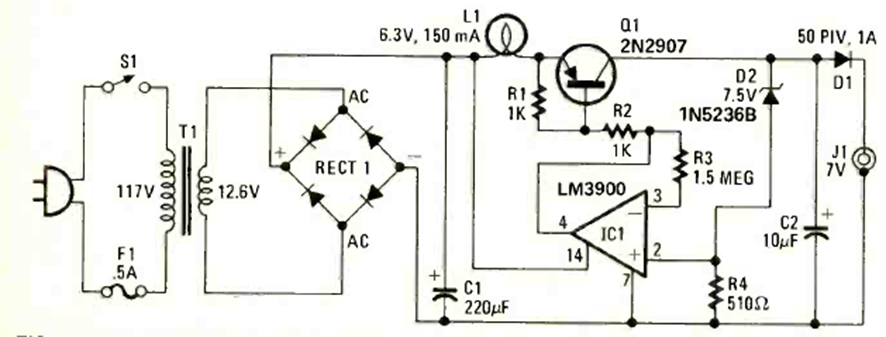

This charger was found in the February 1978 issue of Radio Electronics magazine. The circuit is for low current, only 150 mA, and has a 12 V transformer in the power source.
