Battery Monitor (CB24834E)

Details
Written by: Newton C. Braga

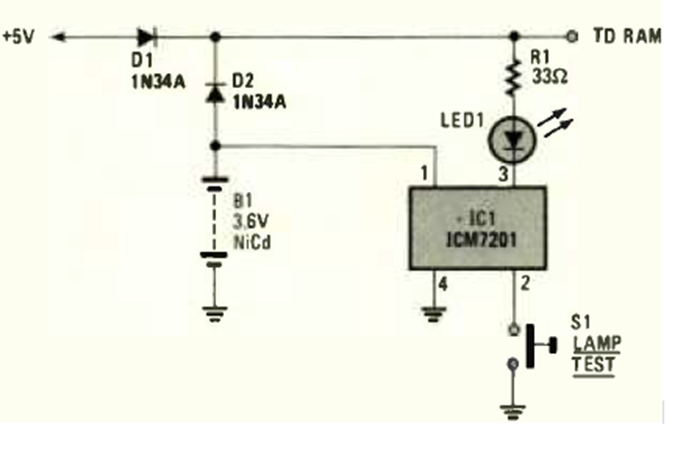

This simple circuit was found in the August 1984 issue of Radio Electronics magazine. The circuit monitors the power supply to a computer and has a backup battery.
