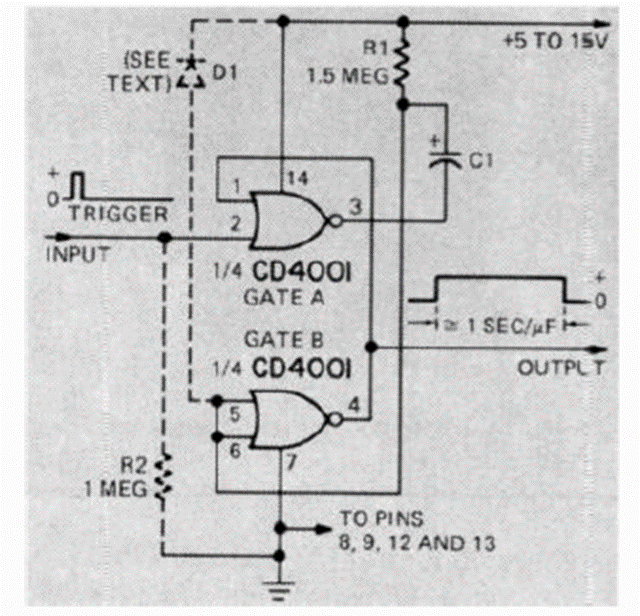

This circuit is from Radio Electronics magazine, November 1974. The supply voltage depends on the application. The time the output remains high depends on the capacitor, typically 1 second for uF as indicated in the diagram.
() CB24334E Monostable 4001
- Details
- Written by: Newton C. Braga
