Delayed start alarm (CB24379E)

Details
Written by: Newton C. Braga

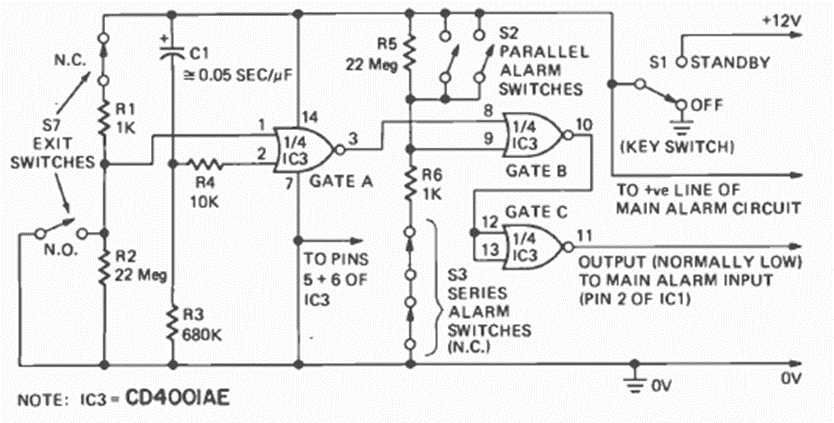

Found in the May 1975 issue of Radio Electronics magazine, this circuit turns on after a certain amount of time. This gives the owner of the premises time to leave before the alarm is activated.
