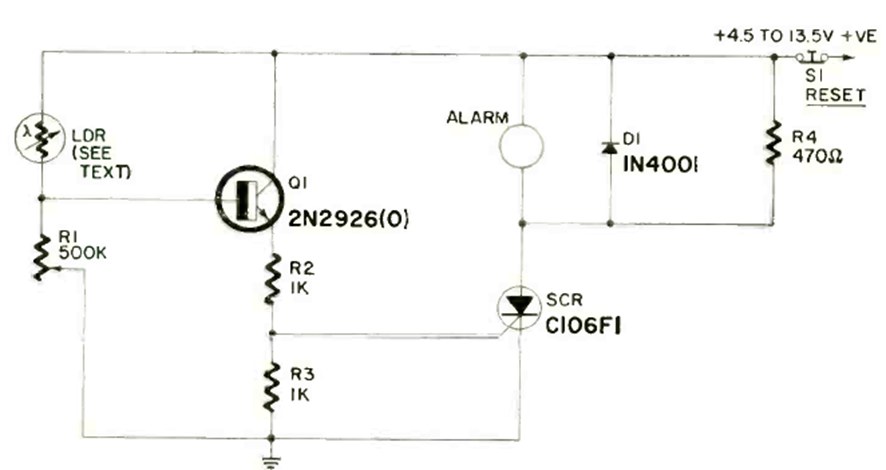

This circuit was found in the August 1971 Radio Electronics magazine. The SCR admits equivalents and instead of the buzzer a sensitive relay can be used.
| Clique na imagem para ampliar |
Very sensitive light alarm (CB24150E)
