Interval switch (CB24849E)

Details
Written by: Newton C. Braga

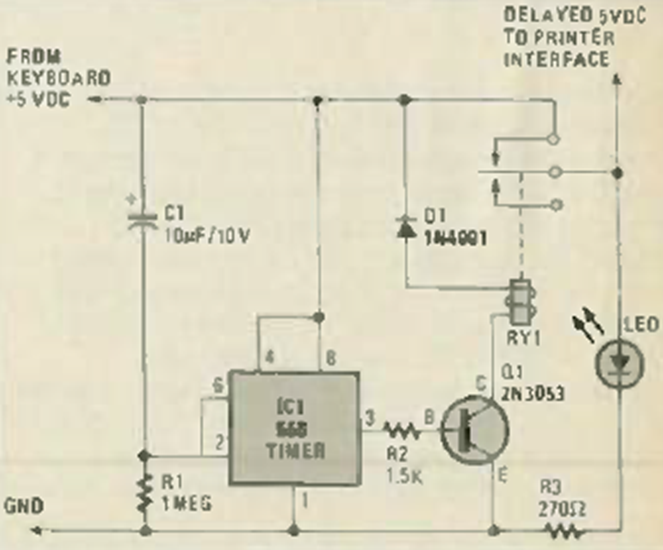

Originally designed to trigger a printer with a delay, this circuit can be used for other purposes. The circuit is from a Radio Electronics from September 1984.




| Clique na imagem para ampliar |
