Decade Counter (CB24584E)

Details
Written by: Newton C. Braga

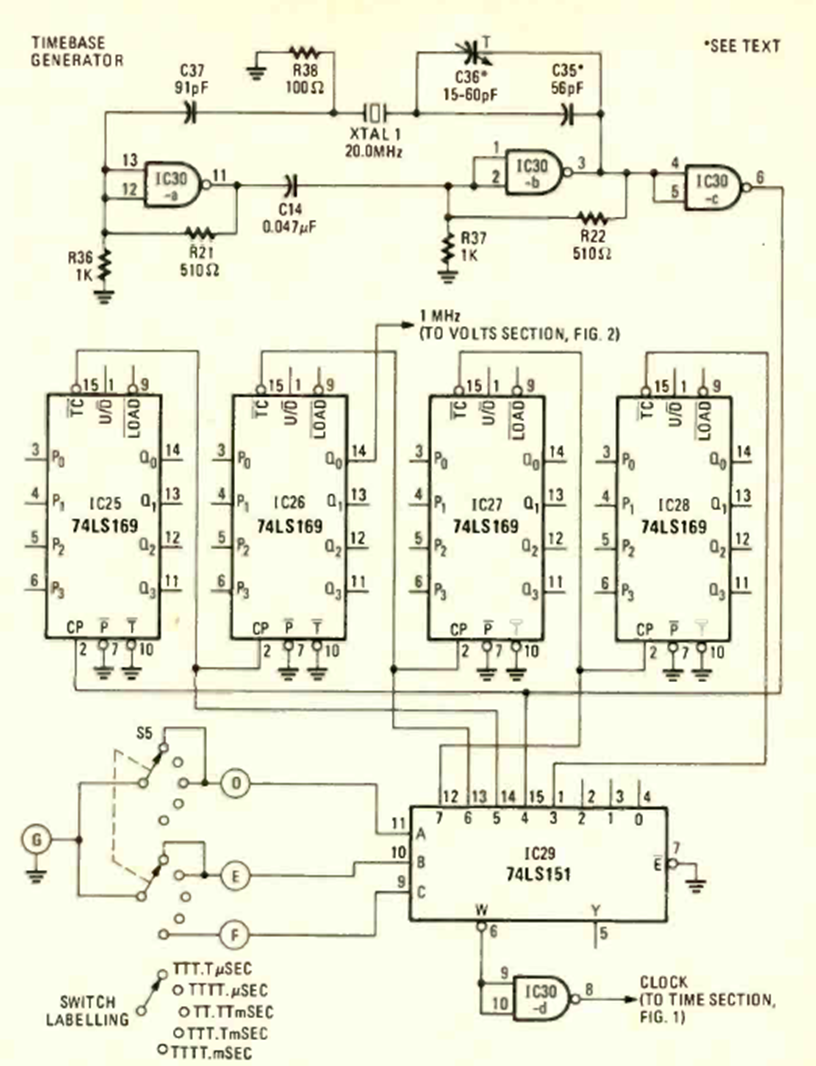

This TTL counter was found in the April 1979 issue of Radio Electronics magazine. The circuit is powered by 5 V and has a pulse generator for educational or experimental purposes.
