Inductive relay (CB24424E)

Details
Written by: Newton C. Braga

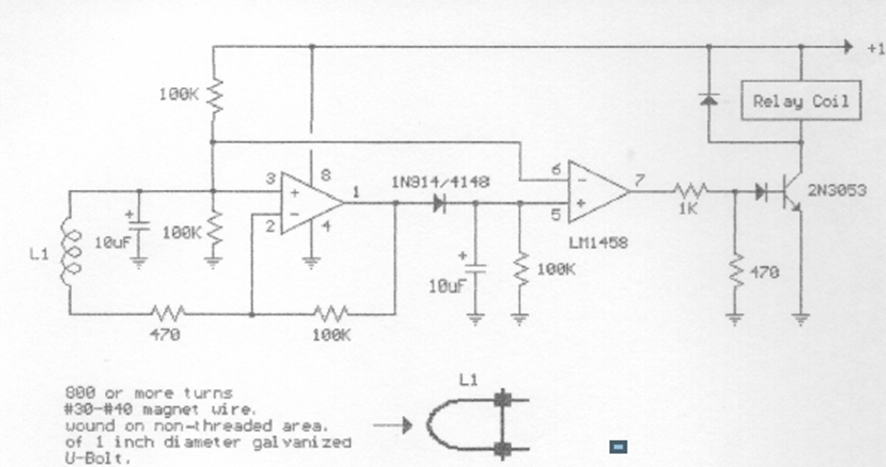

Found in documentation from the 90s, this circuit triggers a relay with inductive signals applied to a link. The sensitivity depends on the frequency and the power supply depends on the relay used.




| Clique na imagem para ampliar |
