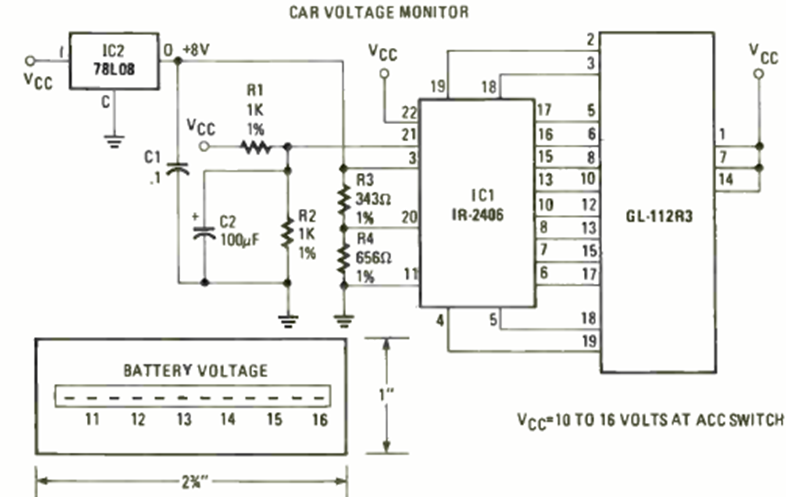

Based on an integrated circuit of the time, this circuit appeared in the October 1979 issue of Radio Electronics magazine. The circuit monitors voltages in the range of 10.5 to 16.0 V.
| Clique na imagem para ampliar |
Bargraph Voltage Monitor (CB24607E)
- Details
- Written by: Newton C. Braga
