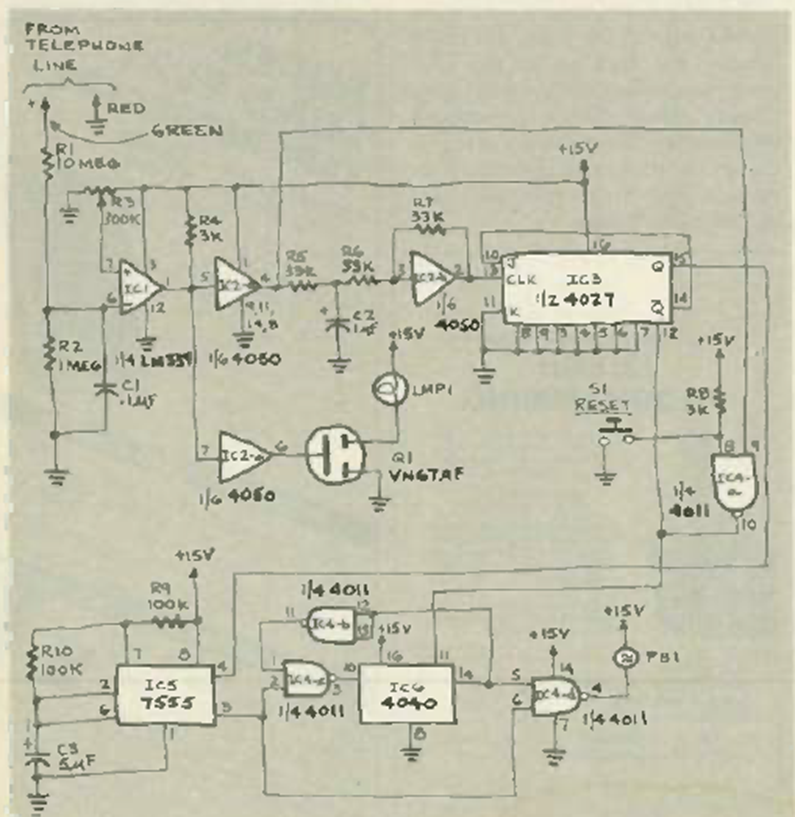

Telephone Off-Hook Alarm (CB24903E)

This circuit for old telephones was found in July 1985 Radio Electronics magazine. It activates an alarm if the telephone is left off the hook.

| Clique na imagem para ampliar |
