Vox for transmitter (CB24038E)

Details
Written by: Newton C. Braga

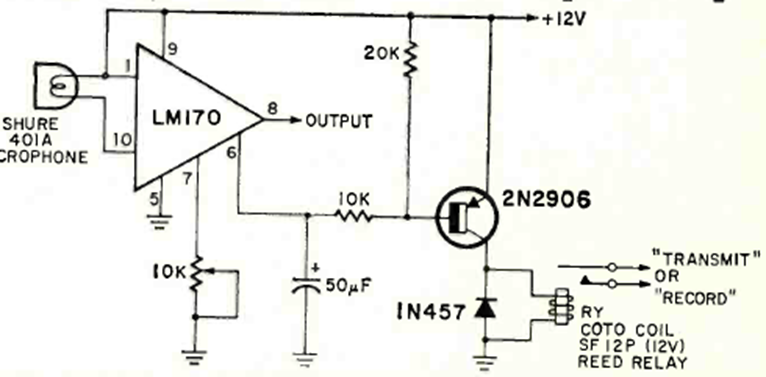

Using the LM170 integrated circuit, this circuit was found in the May 1970 Radio Electronics magazine. The transistor is general-purpose, and the potentiometer adjusts the gain.






| Clique na imagem para ampliar |
