Digitally controlled attenuator (CB24678E)

Details
Written by: Newton C. Braga

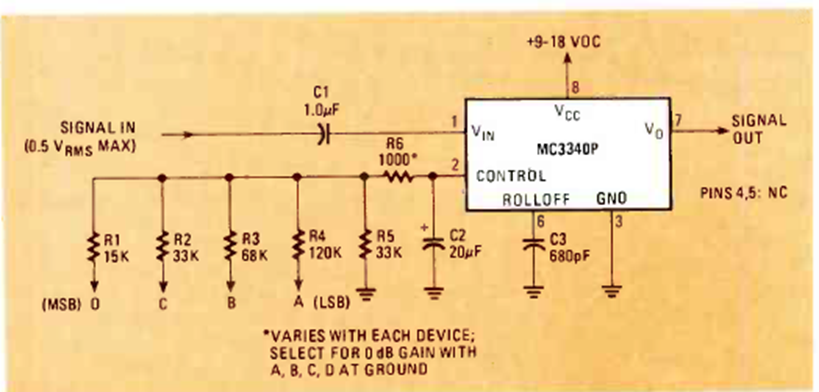

With this circuit it is possible to control the intensity of a signal digitally. The circuit is from Radio Electronics from February 1981. The power supply must be 18 V.
