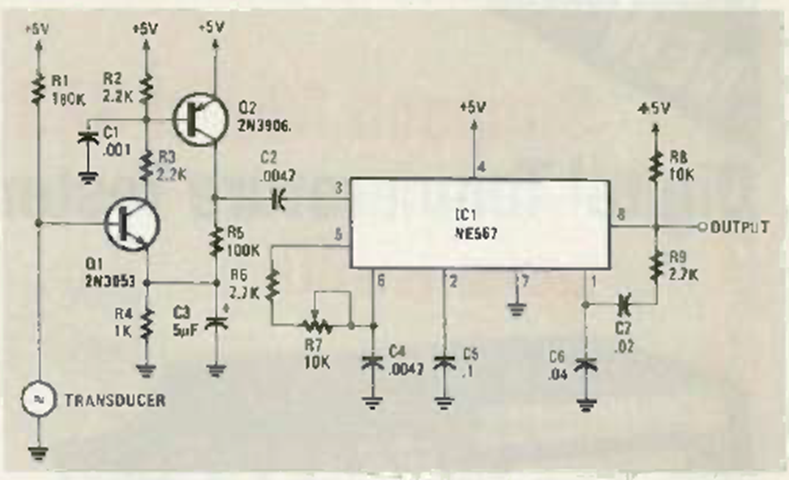

In the figure we have a way of receiving ultrasonic signals of a single frequency using a PLL 567. The circuit is from Radio Electronics from November 1985.
| Clique na imagem para ampliar |
Tuned Ultrasonic Receiver (CB24920E)
- Details
- Written by: Newton C. Braga
