Latched Alarm 4001 (CB24364E)

Details
Written by: Newton C. Braga

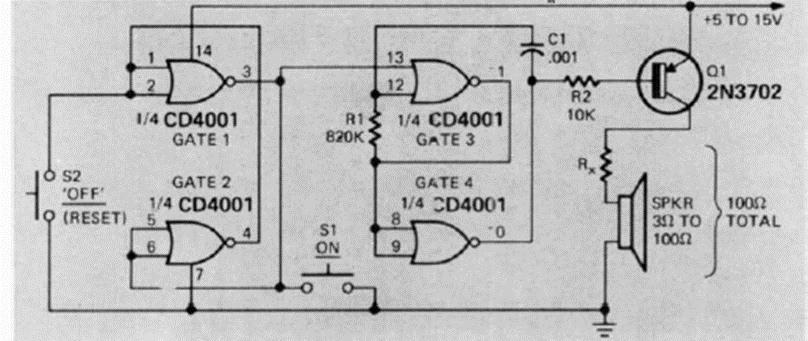

This alarm siren circuit has a latch. We found it in an article in the January 1975 Radio Electronics magazine. Note the power given by Rx and the speaker. It can be increased by changing Q1.




| Clique na imagem para ampliar |
