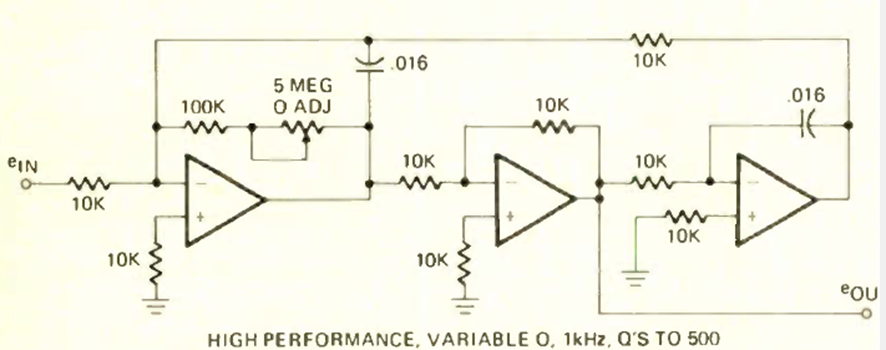

This variable filter circuit was found in July 1975 Radio Electronics magazine. The circuit uses 3 general purpose op-amps like the 741 and must use a symmetrical source.
| Clique na imagem para ampliar |
Variable Filter (CB24389E)
- Details
- Written by: Newton C. Braga
